The MEMOLUB NEXTRA Series is a fully integrated automatic centralized lubrication ecosystem built on progressive lubrication technology, closed-loop control, and scalable digital intelligence. Engineered for precision and consistency, it ensures accurate, repeatable, and verifiable lubrication across multiple lubrication points—even in demanding environments characterized by high pressure, vibration, and variable operating conditions. By combining a high-performance progressive pump with intelligent electronic control systems, the MEMOLUB NEXTRA Series transforms lubrication into a controlled, data-driven process. This enables reliable execution while supporting advanced preventive and predictive maintenance strategies across industrial and mobile applications.

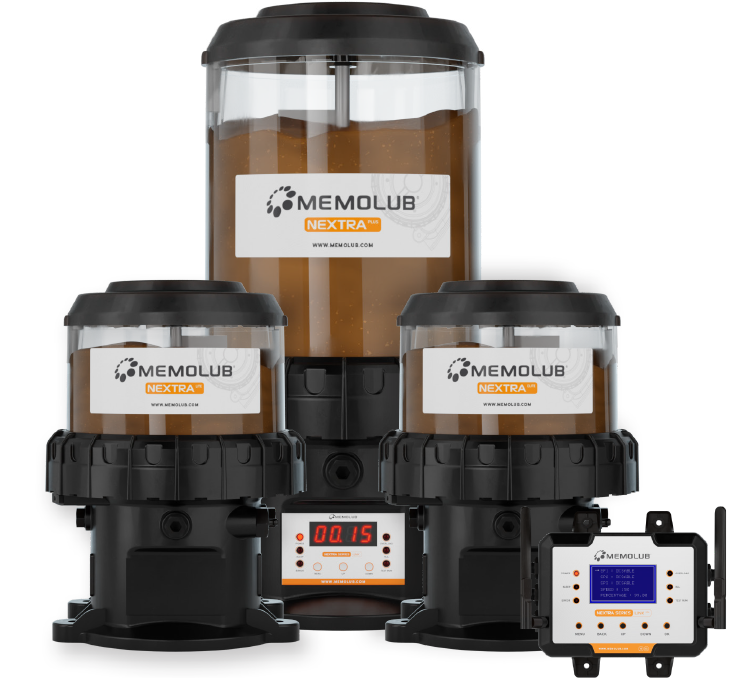

Memolub Nextra Series
A new benchmark in centralised lubrication is here.
- Up to 350 Bar Output Pressure
- Volume-Based Grease Control
- Unique Dual Vent Design
- Onboard Smart Refilling Mode
- Supports Up to 8,000cc Containers
- Scalable IoT & Data Analytics Intelligence
- Leakproof, Durable, Vibration-Resistant
A RELIABLE
ECOSYSTEM
PROGRESSIVE LUBRICATION
SYSTEM PUMPS.
The MEMOLUB NEXTRA pumps are electro-mechanical progressive lubrication units engineered to deliver stable, high-pressure lubricant flow within centralized lubrication systems. Designed for precision, they provide volume-controlled grease distribution to progressive divider blocks, ensuring sequential and verified delivery to each lubrication point. Key engineering features include high-pressure performance, consistent output regardless of temperature variations, and compatibility with greases up to NLGI Grade 2. Built for durability, their robust construction supports continuous operation in demanding environments. The progressive operating principle ensures that any blockage or flow interruption is immediately detected at system level, enabling early fault identification, enhanced system protection, and maximum operational reliability.
DUAL-VENT SYSTEM WITH SEPARATED AIR & GREASE VENTING
Two independent, serviceable vents—one for air evacuation and one for grease overflow—prevent blockage, eliminate internal pressure build-up, and significantly improve pump durability and operational safety.
CONTROLLED REFILLING MODE FOR AIR-FREE, UNIFORM GREASE FILLING
A selectable refilling mode ensures uniform grease distribution within the reservoir while allowing trapped air to escape progressively, eliminating air pockets and enabling immediate, stable operation after refilling.
PROGRESSIVE LUBRICATION PRINCIPLE
Sequential grease delivery to all lubrication points, powered by a reliable 12 V / 24 V DC motor.
VOLUME-BASED LUBRICANT DISCHARGE
Fixed output per stroke for precise, repeatable lubrication, independent of system conditions.
HIGH-PRESSURE & WIDE TEMPERATURE RANGE
Up to 350 bar operation, from –30°C to +70 °C. Compatible with NLGI Grade 2 greases.
ROBUST MECHANICAL DESIGN
Leak-free, durable, and vibration-resistant construction for demanding environments.
PUMP MODEL
OVERVIEW
| VARIANT | DESCRIPTION | TYPICAL APPLICATION | |
|---|---|---|---|
| Nextra Lite |
|
Pump without a controller | OEM and system integrator applications with external control or PLC-based logic. |
| Nextra Plus |
|
Operator-dependent, intelligent controller | Standard industrial automatic lubrication systems requiring local control |
| Nextra Pro |
|
Pump with external intelligent controller | Mobile and off-highway equipment needing in-cabin access and protection from harsh conditions |
| Nextra Ultra |
|
Pump with external intelligent controller enabled with GSM & Wi-Fi connectivity | Smart factories and connected fleets requiring Industry 4.0 integration, real-time monitoring, and centralized performance visibility across networked operations. |
| Nextra Elite |
|
Pump with external intelligent controller enabled with eSIM & Wi-Fi connectivity | Wide-area and globally distributed industrial operations requiring seamless eSIM & Wi-Fi connectivity enterprise-level connectivity, secure remote access, and centralized control across geographically dispersed assets. |
FROM TIME-BASED ESTIMATION TO VOLUMETRIC PRECISION
Conventional systems rely on timed operation, resulting in inconsistent dosing due to varying conditions. The Memolub Nextra Series delivers precise, volume-based lubrication per stroke, ensuring accuracy independent of temperature, viscosity, or system resistance.
FROM OPERATIONAL TO ANALYTICAL LUBRICATION
Traditional lubrication systems perform tasks without providing insight into system performance or condition. The Memolub Nextra Series captures and analyzes operational data, enabling performance tracking and a shift toward predictive maintenance.
FROM BLIND OPERATION TO VERIFIED DELIVERY
Standard systems cannot confirm whether lubricant has reached the lubrication point, risking undetected failures. The Memolub Nextra Series, with Link controllers, verifies output in real time, ensuring confirmed delivery and immediate fault detection.
FROM ISOLATED SYSTEMS TO INDUSTRY 4.0 CONNECTIVITY
Conventional systems require manual inspection, limiting visibility across large or remote installations. The Memolub Nextra Series integrates with digital platforms via advanced connectivity, providing real-time monitoring and full system visibility.
ENGINEERED FOR RELIABILITY AND SAFE MAINTENANCE
Many systems struggle with pressure instability, air entrapment, and inconsistent construction. The Memolub Nextra Series combines high-pressure performance with advanced venting and robust design, ensuring reliable operation and safe, efficient maintenance.
INTELLIGENT
CONTROLLERS.
The MEMOLUB NEXTRA Series LINK controllers form the control, monitoring, and protection layer of the MEMOLUB NEXTRA ecosystem. These microprocessor-based units manage lubrication cycle logic, including discharge and pause sequencing, while continuously monitoring both electrical and mechanical system parameters. Depending on the configuration, LINK controllers enable output verification through proximity sensing, pressure-based validation, as well as advanced fault diagnostics and alarm management. Enhanced versions offer data logging, remote configuration, and seamless connectivity via Wi-Fi, GSM, or eSIM—enabling full integration with digital maintenance platforms and Industry 4.0 environments. Through closed-loop control and intelligent monitoring, the MEMOLUB NEXTRA Series LINK controllers transform the system from a standalone lubrication unit into a fully connected, data-driven maintenance solution.
VOLUME-BASED LUBRICATION CONTROL
Lubrication is governed by pump displacement rather than time, ensuring accurate and repeatable grease delivery in every cycle. This approach eliminates variability caused by temperature, viscosity, or line resistance—removing the uncertainty associated with conventional time-based systems.
PUMP HEALTH MONITORING THROUGH INTELLIGENT ANALYTICS
Continuous analysis of pump operating parameters provides real-time insight into system performance and condition. By monitoring discharge capacity and internal resistance, early signs of wear are detected, enabling condition-based maintenance, extending pump life, and maximizing system availability.
CONTROLER MODEL
OVERVIEW
| VARIANT | INSTALLATION TYPE | ONBOARD CONNECTIVITY | REMOTE SUPPORT | TYPICAL APPLICATION | |
|---|---|---|---|---|---|
| Nextra Series Link Plus |
|
Onboard | - | No | Standard industrial automatic lubrication systems |
| Nextra Series Link Pro |
|
External | - | No | Mobile and off-highway equipment needing in-cabin access and protection from harsh conditions |
| Nextra Series Link Ultra |
|
External | GSM + Wi-Fi | Yes | Smart factories and connected fleets requiring Industry 4.0 integration, real-time monitoring, and centralised performance visibility across networked operations. |
| Nextra Series Link Elite |
|
External | eSIM + Wi-Fi | Yes | Wide-area and globally distributed industrial operations requiring seamless eSIM & Wi-Fi connectivity enterprise-level connectivity, secure remote access, and centralized control across geographically dispersed assets. |
LUBRICATION CYCLE CONTROL
Volume-based control with programmable quantity and intervals, optimized for progressive lubrication systems.
OUTPUT MONITORING AND VERIFICATION
Sensor-based monitoring confirms grease delivery and ensures correct execution of lubrication cycles.
SYSTEM PROTECTION AND DIAGNOSTICS
Integrated monitoring of motor load, voltage, and faults, ensuring safe operation and early issue detection.
RESERVOIR AND PRESSURE MONITORING
Real-time level indication and pressure validation confirm cycle completion and detect blockages early.
DIGITAL CONNECTIVITY
Real-time system visibility with remote monitoring, alerts, and mobile access for enhanced control.
DATA & ANALYTICAL INTELLIGENCE
Logging, trend analysis, and system insights enable predictive maintenance and Industry 4.0 integration.

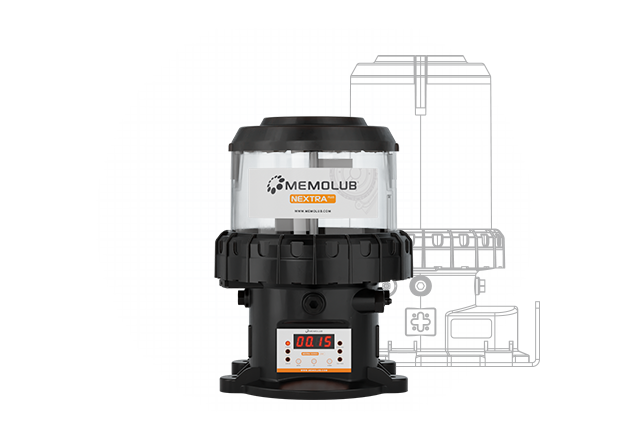

TECHNICAL SPECIFICATIONS
All the essential information about the Memolub Nexus Series is gathered into one comprehensive support and knowledge base. Whether you need technical specifications, installation guides, troubleshooting tips, or maintenance advice, our centralised hub has you covered.
