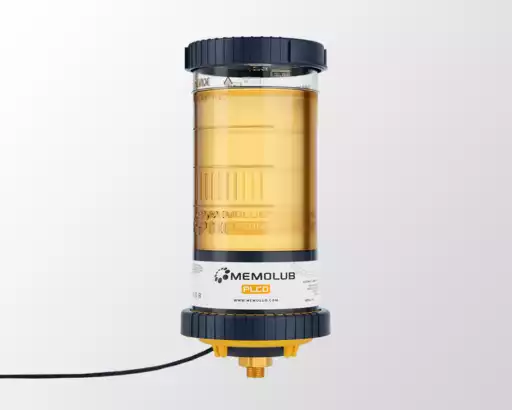

Memolub PLCD Series

The perfect lubrication solution for OEM's.

  • Reusable single & multi-point lubrication system.
  • 24V powered.
  • 25 bar ejection pressure.
  • Up to 8 outlets.
  • Remote installation up to 8m.
  • PLC driven settings.
  • Easy to incorporate in closed-loop feedback systems.

Programmed by your PLC.

The MEMOLUB PLCD Series is powered and programmed by your Programmable Logic Controller (PLC) and automatically delivers a small, precise amount of lubricant at regular intervals for a continuous supply of fresh lubricant directly to your lube point. The system prevents over and under lubrication problems related to manual lubrication. Additional sensors can provide feedback to the PLC to build an autonomous and self containing system.

Memolub PLCD Application 500x500

NEW

VISUAL FEEDBACK
AS A PLUS.

The newly added MEMOLUB PLCD PLUS models include an integrated visual feedback system, providing clear indicators of operation and alerts for any issues, ensuring reliability and ease of maintenance across a wide range of applications.

Memolub PLCD PLUS 240cc new

Power trough memo.

A 5-foot extension cable on the Power-Through Memo is connected to a PLC-controlled power supply. The PLC program controls the frequency of lubrication output cycles, which may be based upon elapsed clock hours, machine cycles, a count of parts produced, or other desired criteria.

Memolub PLCD Memo Cable 500x500

A powerful and efficient pump

The Memolub PLCD series pump is engineered to deliver powerful output pressure (25bar/350psi) and is capable of pumping low- and high viscosity lubricants at extreme temperatures. Thanks to the patented electro-mechanical technology inside Memolub PLCD series, the system is safe for the negative consequences of system back-pressure.

Memolub Pump Animation 500x500

MEMOLUB OIL R-500 COMPATIBLE.

MEMOLUB OIL R-500 is a refillable 500cc reservoir for oil applications, compatible with MEMOLUB PLCD series.

Memolub Oil R500 PLCD

TECHNICAL SPECIFICATIONS

All the essential information about the Memolub PLCD Series is gathered into one comprehensive support and knowledge base. Whether you need technical specifications, installation guides, troubleshooting tips, or maintenance advice, our centralised hub has you covered.

Memolub PLCD Series Tech Specs
